Get ready, get Libre!
The EinScan Libre delivers a fully wireless, standalone 3D scanning experience, powered by its built-in screen and NVIDIA processor. It offers the perfect balance of freedom and efficiency, ensuring reliable results with versatile, user-friendly operation.
Completely wireless
Complete on-device workflow
High-performance processor
Multiple scan modes
Laser & infrared light
Lifelike color reproduction
Cut the Cord, Go Wireless
-
5.5-inch OLED display: Capture, view, and manage your scans effortlessly with its user-friendly touchscreen UI.
-
Embedded computing system: Scan and process independently, with all functions built into the device—no laptop required.
-
Rechargeable batteries: No time for downtime? Just reload and keep scanning. Slide your batteries into the convenient charging dock and be ready to scan at all times.
Brains Behind the Speed
Equipped with a high-performance processor and generous storage, the EinScan Libre provides wireless freedom without compromising computing speed.
-
Powerful NVIDIA processor: The integrated Jetson Orin NX 16GB, 8-core CPU and Ampere GPU with 1024 CUDA cores delivers fast data processing.
-
1TB SSD: Room to roam. With expansive storage, you can scan freely without worrying about running out of space—whether high-res models or hefty projects.
All Modes On Deck
Switch between the EinScan Libre's three versatile scan modes to cover object sizes ranging from 0.1m to over 10m. These IR (infrared) and laser modes help the scanner adapt to all kinds of materials, whether you're indoors or outdoors in direct sunlight.
Laser HD Mode
Revolutionary 101 laser lines enable maker-free, high-detailed scanning with rich texture.
-
Resolution up to 0.05 mm
-
101 blue laser lines
-
Supports texture alignment
IR Rapid Mode
Ideal for larger areas, this mode offers marker-free and high-efficiency scanning with invisible, eye-safe infrared light. It’s less sensitive to ambient light, making it perfect for outdoor use.
-
Working distance up to 1.5 m
-
FOV of 983 x 979 mm
IR Adaptive Mode
Ideal for reflective and black surfaces, delivering reliable results.
-
38 IR laser lines
-
Volumetric accuracy up to 0.04 + 0.06 mm/m
Lifelike Colour Reproduction
Experience high-resolution colour capture with the EinScan Libre. Equipped with a 48MP colour camera, it delivers lifelike colour fidelity, capturing every detail with clarity and vibrant colours. The EinScan Libre ensures your scans reflect the full richness of the scene or object you're scanning.
Where Wireless Meets Accuracy
Experience the perfect blend of freedom and accuracy with the EinScan Libre. This advanced wireless scanner delivers an impressive volumetric accuracy of up to 0.04 + 0.06 mm/m, ensuring that every detail is captured with pinpoint precision. Whether working on intricate designs or complex projects, the EinScan Libre provides the reliability and accuracy you need, all in a truly wireless device.
3D Models
Mesh data output
Easily generate mesh data with a single click, completing the entire process directly on the device. Export in STL, OBJ, ASC, and LAS formats, suitable for a wide range of applications.
Quick data editing
Edit scan data directly on the device, simplifying the workflow.

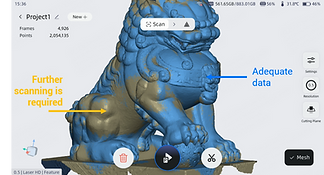

Data quality indicator
Blue areas indicate adequate data; yellow areas indicate that further scanning is required.
Range indicator box
The scanner projects a green rectangle representing the scanning area.
In-project resolution adjustment
Modify resolution without starting a new project. Seamlessly view, adjust, and continue scanning without interruption.
Working distance adjustment
Change the data collection distance range to filter out the background or get maximum data amount.
EinScan Libre Tech Specs
Volumetric accuracy
Up to 0.04 + 0.06 mm/m
Scan speed
Up to 4,500,000 points/s (Laser HD)
Light source
IR Rapid: IR VCSEL; IR Adaptive: 38 IR laser lines; Laser HD: 101 blue laser lines
Resolution (point distance)
IR Rapid & IR Adaptive: 0.5 ~ 10 mm; Laser HD: 0.05 ~ 3.0 mm
Maximum FOV
Up to 983 x 979 mm (IR Rapid)
Alignment modes
Feature / Texture / Hybrid / Markers / Global markers
